Fully automated logistics parcel rotation sorting system
Rotary Efficiency & Space-saving
Fully Automatic Operation
Precision & Stability
Intelligence & Flexibility
Low Noise & Energy-saving
Easy Maintenance & Expansion
- Overview
- Recommended Products
Features and advantages
Rotary Efficiency & Space-saving: Circular structure, sorting capacity of 1500-3000 pieces/hour, saving 40% floor space with congestion-free diversion.
Fully Automatic Operation: Integrates feeding, identification, sorting and unloading processes, no manual intervention, reducing costs and errors.
Precision & Stability: Photoelectric sensing + servo drive, accuracy rate ≥99.9%; wear-resistant and non-slip materials, suitable for 0.5-30kg multi-form parcels without tilting or falling.
Intelligence & Flexibility: PLC control, compatible with WMS/ERP systems, supporting multi-dimensional sorting rules and stepless speed regulation.
Low Noise & Energy-saving: Noise ≤60dB, 20% lower energy consumption than traditional equipment, dustproof and moisture-proof with long service life.
Easy Maintenance & Expansion: Modular design for easy component replacement; 8-32 sorting outlets expandable.

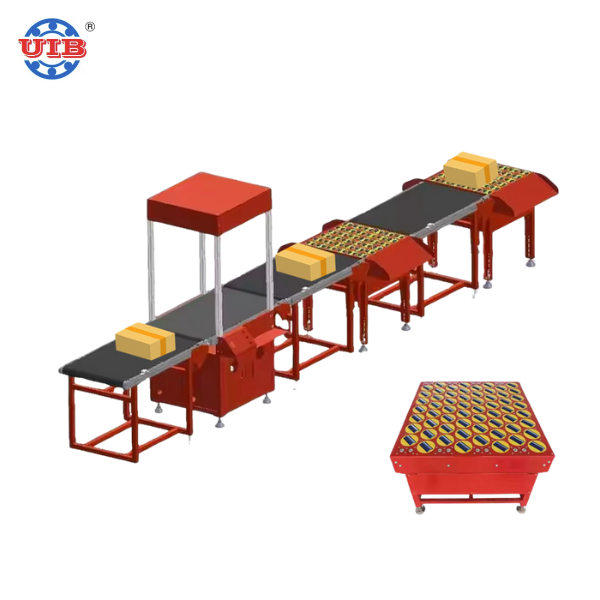

Product Overview
Feeding & Identification: Automatic feeding + guiding correction; high-definition code scanner with multi-angle recognition (≤0.2 seconds/piece) for quick rule matching.
Rotary Sorting: Circular track + independent drive modules, precise angle-controlled diversion, non-slip design compatible with multi-material parcels.
Control & Management: Touchscreen operation, supporting parameter setting and fault alarm; remote monitoring and data statistics.
Safety Protection: Guardrails + anti-pinch sensors, automatic shutdown during congestion; fault self-diagnosis to reduce downtime.
Relevant Parameters
| Type | Flat Belt Conveyor |
| Brand | UIB or Customizable |
| Material | Alloy Steel, PVC; featuring easy-to-clean property |
| Structure & Performance | 1-layer design, capacity 35-60kg, adjustable rotational speed, self-correctable speed function, operation direction: forward and reverse, usage: transmission |
| Dimensions & Packaging | Customizable dimensions; individual packaging size: 200 × 50 × 70 cm; individual product gross weight: 40.000 kg; sales unit: single product |
| After-sales Service | Provide video support and online technical support; warranty period: 1 year (12 months); video technical support remains available after warranty expiration |

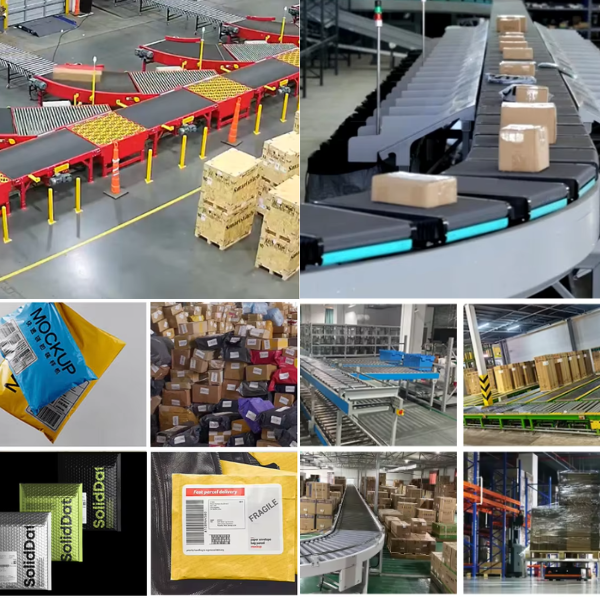

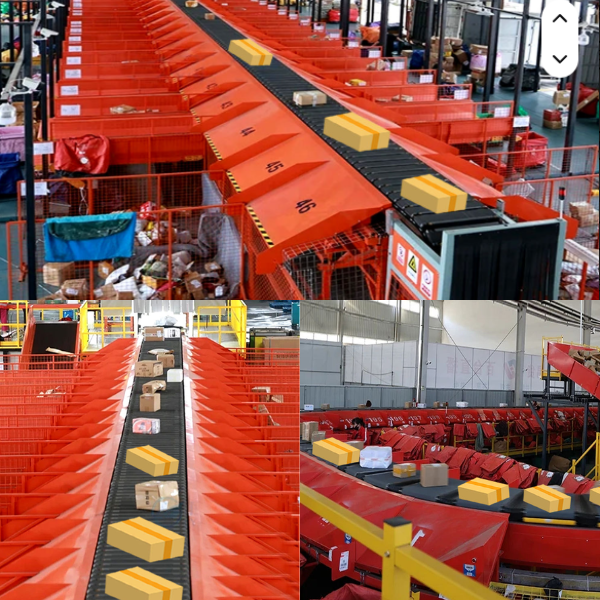

Applicable Scenarios
1. Application Scenarios
E-commerce logistics, express sorting, cross-border logistics, supermarket distribution, pharmaceutical logistics and other scenarios requiring efficient sorting.
2. Usage Highlights
Space-constrained venues: Suitable for small and medium-sized sorting centers, terminal distribution stations and other places with space-saving needs.
High-traffic periods: Effectively copes with peak parcel periods such as e-commerce promotions and holidays.
Multi-category operations: Compatible with parcels of different weights and forms without additional adjustments.
Unmanned requirements: Can work with AGVs to achieve an unmanned closed loop of "feeding - sorting - unloading".
