automatic multi head weigher leisure food packaging machine with metal detector-0

Packaging Machine

Home >  Products >  Mechanical Equipment >  Packaging Machine

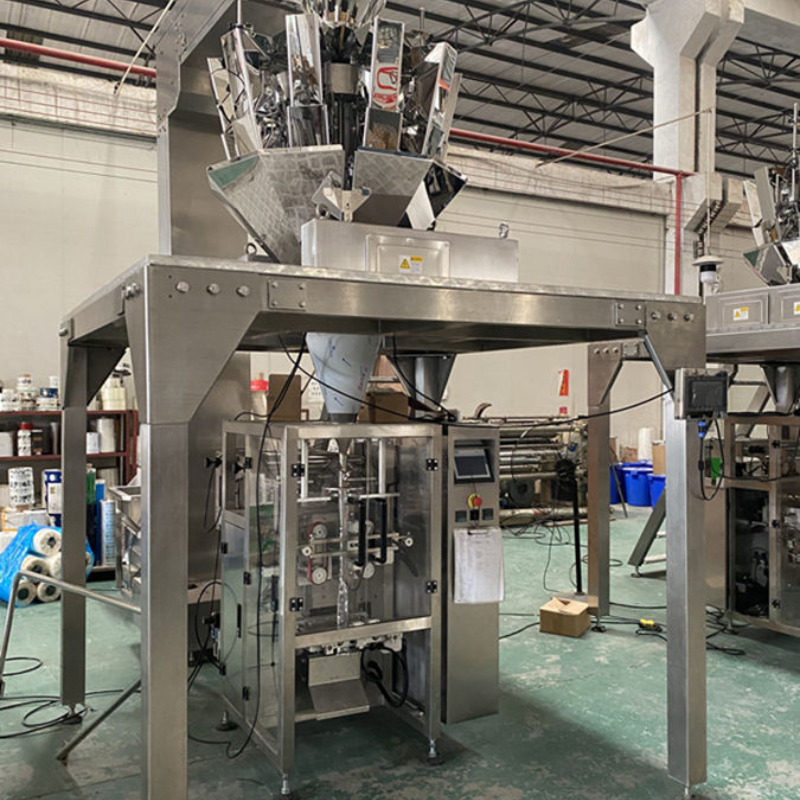

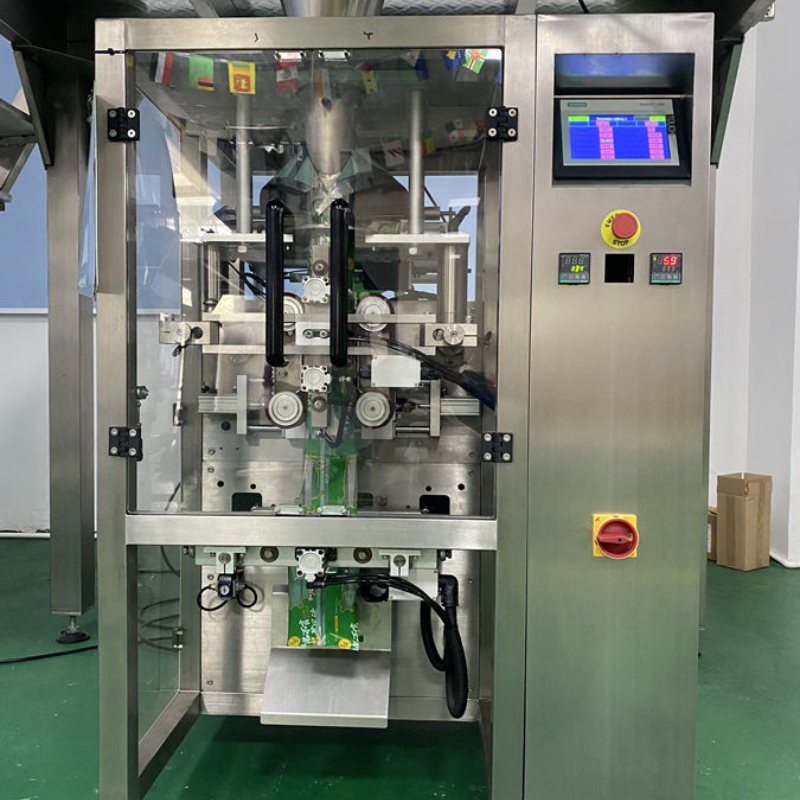

Automatic Multi-Head Weigher Leisure Food Packaging Machine with Metal Detector

High-Precision Multi-Head Weighing
Integrated Metal Detection
Efficient Automatic Packaging
Food-Grade Safe Material
Intelligent Operation & Fault Reminder
Strong Adaptability & Customization
Stable Performance & Durable Use

  • Overview
  • Recommended Products

Product Advantages
High-Precision Multi-Head Weighing: Equipped with multi-channel electronic combination weigher, fast weighing speed and high precision (±0.1~0.5g), ensuring accurate food metering and reducing material waste.
Integrated Metal Detection: Built-in high-sensitivity metal detector, real-time detection of metal impurities in food during packaging, automatic rejection of unqualified products, complying with food safety standards.
Efficient Automatic Packaging: Realize one-stop automatic operation of weighing, filling, bag making, sealing, coding and detection, high packaging speed, greatly improving production efficiency of leisure food.
Food-Grade Safe Material: All food-contacting parts adopt 304/316 stainless steel, corrosion-resistant and easy to clean, no secondary pollution, meeting food hygiene and production requirements.
Intelligent Operation & Fault Reminder: Touch screen HMI with simple parameter setting, automatic fault alarm and self-check function, no professional operation required, reducing labor intensity.
Strong Adaptability & Customization: Adapt to various leisure food packaging (granular, strip, block), customizable bag type, packaging size and weighing range, matching diverse production needs.
Stable Performance & Durable Use: Industrial-grade core components, reinforced frame structure, stable and low-noise operation, adapt to 24h continuous production, low failure rate and easy maintenance.

Product Details

The automatic multi-head weigher leisure food packaging machine with metal detector is a professional integrated packaging equipment for leisure food processing industry, combining high-precision multi-head weighing, automatic packaging and metal impurity detection. Adopting food-grade structural materials and intelligent control system, it realizes one-stop automatic operation from food weighing to finished product packaging and safety detection, with high weighing accuracy and packaging efficiency. The equipment complies with food safety and hygiene standards, supports flexible customization of packaging specifications, can be seamlessly connected with upstream and downstream production lines, effectively improving the automation level of leisure food production, reducing manual intervention and material waste, and is the core equipment for large-scale production of leisure food enterprises.

Attribute Information

Attribute Name Detailed Parameters (Customizable)
Product Name Automatic Multi-Head Weigher Leisure Food Packaging Machine with Metal Detector
Applicable Food Granular/block/strip leisure food (nuts, puffed food, candy, potato chips, melon seeds, etc.)
Weighing System 10/14/16 head combination weigher; Weighing range 5-1000g; Weighing accuracy ±0.1~0.5g
Packaging Speed 40-180 bags/min (adjustable by product specification)
Packaging Bag Type Pillow seal, back seal, three-side seal, four-side seal; Customizable special bag type
Packaging Size Length 80-350mm, Width 50-200mm; Bag thickness 0.03-0.15mm
Metal Detector Detection sensitivity: Fe ≥0.3mm, SUS ≥0.5mm; Automatic rejection of unqualified products
Food-Contact Material 304/316 stainless steel; Food-grade PP/PE feeding parts
Control System 7/10 inch touch screen HMI; PLC control; Automatic fault alarm, counting, material shortage reminder
Sealing System Heat sealing; Sealing temperature 0-300℃ stepless adjustable; Anti-scald and anti-leakage design
Power Parameters Voltage 220/380V AC (3-phase); Frequency 50Hz; Total power 3-8KW
Air Supply 0.6-0.8MPa (air compressor matching required); Air consumption ≤0.5m³/min
Working Environment Temperature 5-40℃; Humidity ≤85% (no condensation); Dust-free food workshop
Other Parameters Noise ≤70dB; Overall dimension: Customizable; MOQ: 1 set; On-site debugging and after-sales training available





Scene Details
With the advantages of integrated weighing, packaging and metal detection, high precision and food safety compliance, this product is specially designed for leisure food production and processing, widely used in various leisure food packaging scenarios, as follows:
Nut & Kernel Packaging: Suitable for automatic packaging of peanuts, walnuts, almonds, pistachios and other nuts, high-precision weighing ensures uniform net weight of each bag, metal detection eliminates impurity risks.
Puffed Food Packaging: Adapt to packaging of potato chips, french fries, popcorn and other puffed food, fast packaging speed matches large-scale production, good sealing performance keeps food crisp.
Candy & Pastry Packaging: For packaging of hard candy, soft candy, lollipop, small pastries, customizable small bag specifications, meeting the needs of individual and bulk packaging.
Melon Seeds & Snack Food Packaging: Suitable for sunflower seeds, pumpkin seeds, fried beans and other granular snack food, anti-leakage filling design avoids material scattering during packaging.
Leisure Food Production Line: Seamlessly connect with food roasting, frying, sorting and other upstream processing equipment to form an automated leisure food production and packaging line, improving production continuity.
Food Processing Enterprises of All Scales: Adapt to the production needs of small, medium and large leisure food enterprises, one machine integrates multiple functions, reducing the cost of separate equipment configuration and saving workshop space.
This product integrates three core functions of weighing, packaging and metal detection, fully complying with national food safety production norms, and is the core equipment for the automated production of leisure food. It supports personalized customization of packaging parameters, adapts to the packaging needs of various types of leisure food, effectively improves the production efficiency and product safety of enterprises, reduces labor and material costs, and matches the large-scale, standardized and intelligent production needs of the modern leisure food industry.
