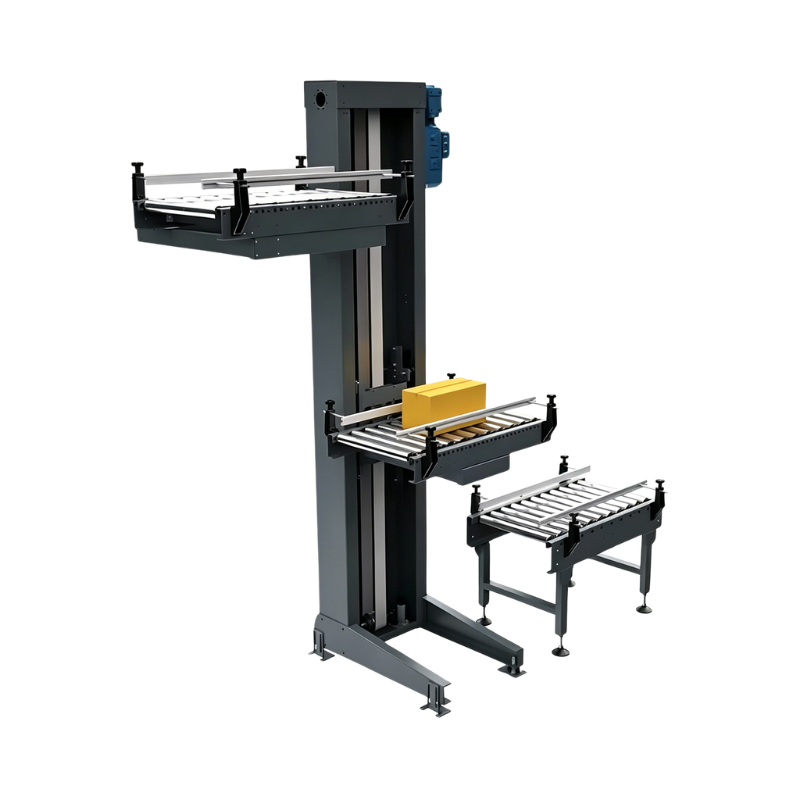

Custom C/Z/E Type Reciprocating Vertical Pallet Elevator | Continuous Vertical Conveyor for Carton Handling
Supports customizable C-type, Z-type and E-type lifting modes to fit different workshop layouts
Reciprocating continuous vertical conveying design for uninterrupted carton transportation
Solid pallet bearing structure, stable and safe for moving cartons and boxed goods
Precision servo/variable frequency control, stable operation with low failure rate
Full safety protection device to prevent material falling and equipment collision
Custom lifting height, speed and load to meet diverse production line demands
- Overview
- Recommended Products
Product & Advantages
Multi-structure optional design (C/Z/E), flexible for single-side and cross-layer conveying
Continuous reciprocating operation greatly improves vertical conveying efficiency
Flat pallet conveying protects cartons from extrusion, deformation and damage
Compact vertical structure saves factory floor space compared with slope conveyors
Fully automatic operation reduces manual labor and lowers production costs
Product Parameters
| Item | Specification |
| Conveying Type | Custom C / Z / E Type Reciprocating Vertical Lifting |
| Applicable Materials | Cartons, boxes, packaged finished goods |
| Lifting Height | 1–20m (Customized) |
| Conveying Speed | 5–20 cycles/min (Adjustable) |
| Single Load Capacity | 10–100kg (Customized) |
| Pallet Size | Customized according to carton dimension |
| Frame Material | Carbon steel / Stainless steel optional |
| Control System | PLC automatic control, frequency speed regulation |
Product Description
This custom C/Z/E type reciprocating vertical pallet lifting conveyor is specially designed for automatic vertical transportation of cartons and packaged products. It supports three mainstream installation modes to adapt to different factory layouts and multi-layer cross-floor conveying requirements.
Adopting continuous reciprocating circulating operation, the equipment realizes stable and high-efficiency carton lifting without intermittent pause. The reinforced pallet structure ensures safe and flat material conveying without carton deformation. With fully automatic PLC control, customized size and load parameters, it is widely used in logistics warehousing, packaging workshops and automated production lines to realize unmanned vertical material handling.
