Automatic Powered Extendable Flexible Roller Conveyor

Product Details

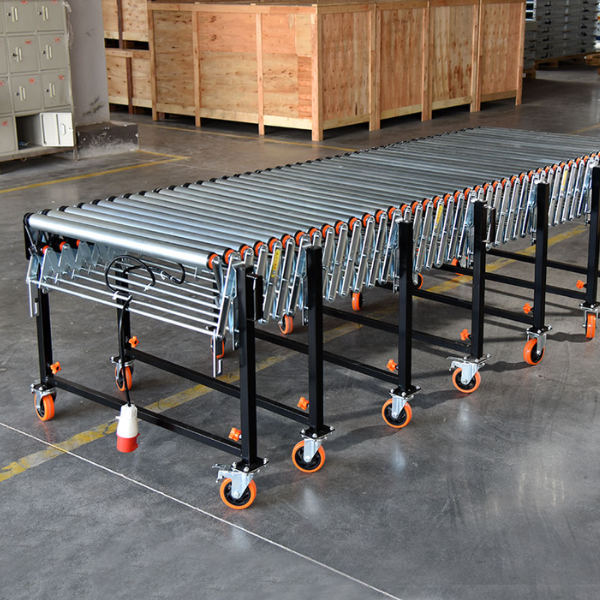

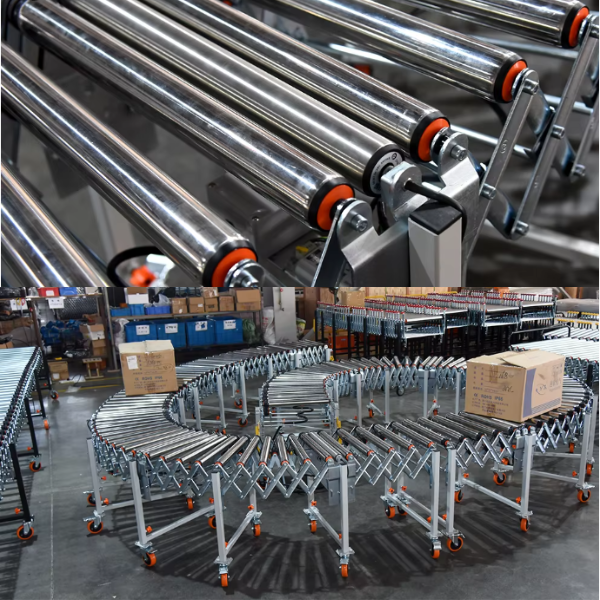

The telescopic roller conveyor has a regular telescopic length of 3-15 meters (customizable up to 20m+), with a variable-frequency adjustable conveying speed of 0.5-1.5m/s. It is equipped with carbon steel/stainless steel rollers (diameter 50-89mm) and has a load-bearing capacity of 50-500kg/m (heavy-duty models customizable up to 1000kg/m+). Driven by electric rollers or geared motors (mute ≤65dB), it supports manual/PLC control (compatible with automated systems). Its structure includes roller brackets (anti-slip optional), telescopic guides (gear rack/chain drive), and motor reducers (some support manual telescoping when powered off). Optional accessories include universal wheels, guardrails, and photoelectric sensors, making it suitable for multiple scenarios.​

Relevant Parameters

Scenario Details Description
1、Warehousing & Logistics: Connect trucks with warehouses/sorting tables, adjust length to fit different vehicle types, transfer materials quickly, and reduce loading/unloading time.
2、Manufacturing: Link production lines of different processes, movable to adapt to flexible production, avoid material accumulation, and improve production line efficiency.
3、Supermarkets/Retail: Used for backstage replenishment and cargo loading/unloading; dedicated materials can be selected for cold chain scenarios to protect fresh goods and reduce manual exposure to low temperatures.
4、Ports/Terminals: Connect containers with yards/vehicles; choose heavy-duty models to adapt to heavy-weight materials and reduce handling risks.​
