Automatic Rotary Chain Vertical Sorting Conveyor Elevator

Product Details Description
Customized for pallet bags and food & beverage cartons, this elevator integrates 3 core functions: vertical lifting, automatic rotation and precise sorting. It connects production, warehousing and logistics without manual intervention, solving traditional equipment pain points of low efficiency, large space occupation, high material loss and high labor costs.
Its core consists of 7 major components (rotary chain, lifting device, sorting mechanism, etc.), customized for two material types. It features 360° flexible rotation and steering, stable synchronous lifting, precise sorting with small errors, closed/semi-closed protection for food industry cleanliness, and dual PLC automatic/manual control for unattended operation.
Working Principle: Materials are fed via the feeding platform. The control system identifies materials, drives the rotary chain to steer, lifts them to the designated height, and the sorting mechanism diverts them to the corresponding discharge port for automated integrated conveying and sorting.

Product Advantages
(1) Integrated Sorting and Lifting, High Efficiency and Labor Saving
Integrated sorting and lifting eliminates the need for additional equipment, completing multiple processes with one unit and shortening the material processing process; full automatic operation can replace 5-8 workers, reducing costs and avoiding operational errors, with sorting efficiency increased by more than 60%, suitable for large-batch continuous processing needs.
(2) Dual Material Adaptability, High Flexibility
Precisely adapted to both pallet bags and food & beverage cartons, it can adjust sorting spacing, rotation speed and lifting height to adapt to materials of different specifications, meeting multi-scenario needs without replacing equipment; the 360° rotary chain is suitable for multi-directional feeding and discharging, with flexible connection and strong compatibility.
(3) Stable Operation, Low Material Loss
Synchronous transmission technology ensures stable lifting and smooth steering, avoiding material damage, deformation and falling, with the loss rate controlled within 0.1%; the sorting mechanism adopts flexible positioning, which does not damage the packaging, meeting the high requirements of the food & beverage industry for packaging integrity.
(4) Compact Structure, High Space Utilization

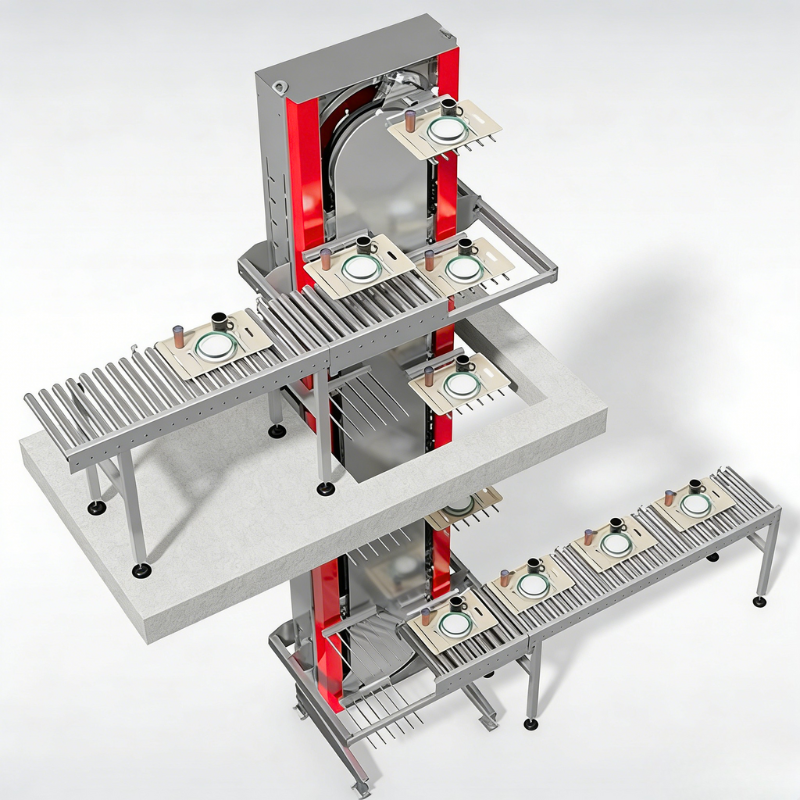

The vertical design occupies only 1/4 of the floor space of traditional equipment, suitable for narrow spaces in factories and warehouses without large-scale layout adjustment; it can realize multi-floor conveying without transfer platforms, saving space and adapting to the renovation of old factories and small warehouses.
(5) Safe and Reliable, Easy to Maintain
Equipped with a complete safety protection system, it automatically shuts down and alarms in case of abnormalities to eliminate safety accidents; core components are made of high-strength wear-resistant materials with long service life and a maintenance cycle of 1-2 years; inspection doors are reserved, key components are easy to disassemble, no professional personnel are required, and maintenance costs are low.
(6) Suitable for Food Industry, Up to Cleanliness Standards
The parts in contact with materials are made of food-grade stainless steel, odorless and residue-free, meeting the hygiene standards of the food industry; the equipment surface is easy to clean and disinfect, and the semi-closed protection prevents pollution from dust and debris, suitable for clean production and warehousing needs of the food industry.

Product Attribute Information
(1) Core Technical Attributes
Equipment Type: Automatic rotary chain vertical sorting conveyor elevator
Core Functions: Vertical lifting, 360° automatic rotation, precise sorting, continuous conveying
Adaptable Materials: Pallet bags (flexible), food & beverage cartons (rigid and regular)
Lifting Height: 3-20m (conventional), customizable special models of 20-30m
Sorting Speed: 30-120 pieces/minute (adjustable)
Load-bearing Range: 50-500kg/piece (customizable for larger load-bearing)
Rotation Angle: 0-360° (stepless adjustable, precise positioning)
Conveying Speed: 0.5-1.5m/s (adjustable)
Sorting Accuracy: ±5mm, no wrong sorting or missing sorting
Drive Power: 7.5-37kW (customized on demand)
Safety Protection: Overload protection, anti-falling protection, deviation protection, emergency stop, alarm device
Control Mode: Dual mode of PLC automatic + manual, supporting production line linkage
(2) Specification and Model Attributes (Conventional Mainstream Models)
Model SLC-500: Load-bearing ≤500kg, lifting 3-10m, sorting 30-80 pieces/minute, suitable for small and medium-sized food factories and warehouses
Model SLC-1000: Load-bearing ≤800kg, lifting 5-15m, sorting 60-100 pieces/minute, suitable for large and medium-sized food factories and logistics warehouses
Model SLC-1500: Load-bearing ≤1000kg, lifting 8-20m, sorting 80-120 pieces/minute, suitable for large logistics parks and large-scale food bases
(3) Material Attributes
Material Contact Part: Food-grade stainless steel (304/316 optional), odorless and easy to clean
Rotary Chain: High-strength wear-resistant alloy steel chain, corrosion-resistant, breaking load ≥500KN
Fuselage Frame: Carbon steel (can be anti-corrosion and anti-rust treated) or stainless steel
Conveying Platform: Non-slip stainless steel panel, preventing material sliding
Drive Device: YE2 energy-saving motor, hard tooth surface reducer, stable power and energy-saving
Protective Shell: Cold-rolled steel plate (sprayed plastic) or stainless steel, optional semi-closed/full closed
(4) Installation and Other Attributes
Installation Method: Floor-mounted fixed installation, requiring a solid foundation, suitable for indoor use
Equipment Weight: 5-30t (conventional models, varying on demand)
Applicable Environment: 0-40℃, humidity ≤85%, no corrosion, no flammable and explosive gases (food clean scenarios preferred)
Overall Dimensions: Length 1.2-2.5m × Width 1.0-2.0m × Height 3-20m (customizable)
Service Life: 8-10 years for the whole machine, 5-8 years for core components
Cleaning and Maintenance: Support high-pressure cleaning and disinfection, detachable components can be cleaned separately



Scenario Details Description

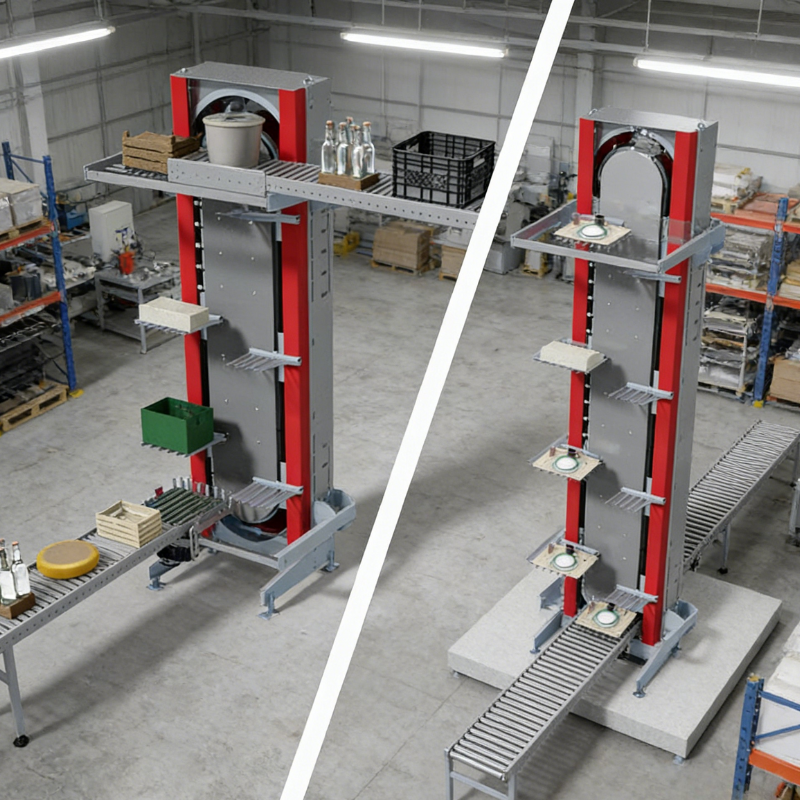

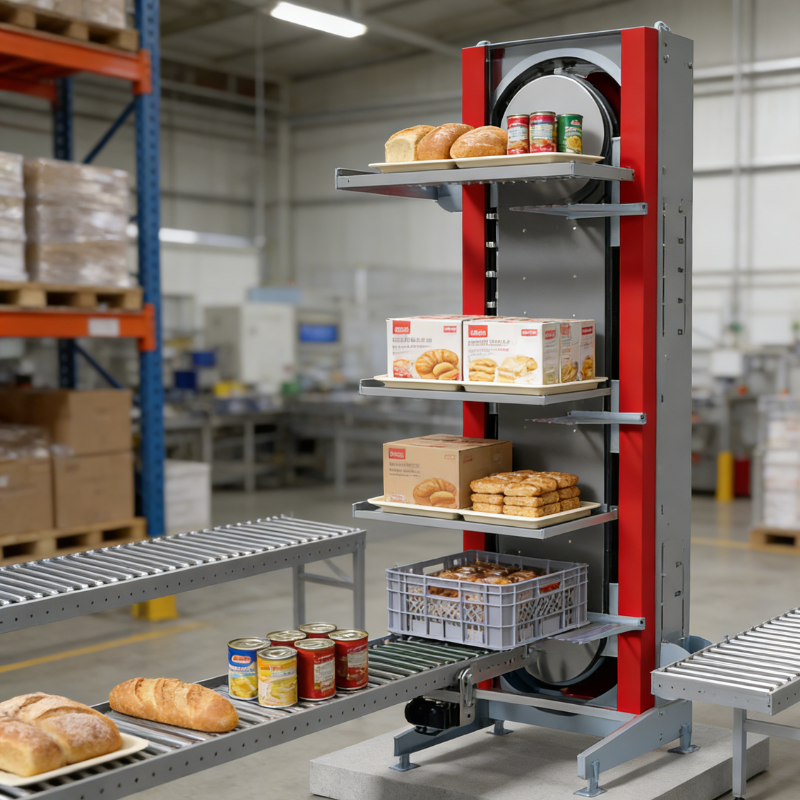

(1) Application Scenarios in the Food & Beverage Industry
1. Adaptable Materials
Food & beverage cartons (regular cartons such as mineral water and beverages, 30-80cm in length × 20-60cm in width × 15-50cm in height); food pallet bags (flour, rice, etc., 50-200kg/bag, no sharp edges and corners).
2. Core Application Links
Workshop Connection: Lift and sort finished cartons from the end of the production line to the warehousing or packaging line without manual labor, improving efficiency and preventing carton deformation.
Warehouse Transfer: Realize multi-floor conveying and sorting of finished cartons and pallet bags, replacing manual labor and elevators, saving time and costs.
Outbound Sorting: Rotate and sort different types of materials to the corresponding outbound lines according to orders, achieving precise shunting and reducing wrong and missing orders.
Clean Workshop: Convey and sort food pallet bags, with food-grade materials and easy cleaning, preventing pollution and ensuring cleanliness.
3. Scenario Advantages
Adapt to the cleanliness, high efficiency and low loss needs of the food industry; food-grade materials meet standards and prevent pollution; automation reduces manual contact, and stable operation protects packaging; compact structure adapts to narrow spaces, easy to install, and can be quickly integrated into the existing production line.
(2) Warehousing and Logistics Scenarios Related to Pallet Bags
1. Adaptable Materials
Various non-corrosive pallet bags (50-500kg/bag, stackable, no sharp edges and corners), suitable for flexible packaging such as feed bags, chemical fertilizer bags and light cement bags.
2. Core Application Links
Warehousing Sorting: Lift and sort incoming pallet bags to the corresponding storage areas, achieving precise shunting, improving warehouse regularity and saving labor.
Raw Material Feeding: Lift and sort palletized raw materials from the warehouse to the feed inlet of the production line, realizing automatic feeding and preventing damage.
Logistics Connection: In large logistics parks and stereoscopic warehouses, realize multi-floor conveying and sorting, connect with conveyor lines, and improve turnover efficiency.
3. Scenario Advantages
Wide load-bearing range, suitable for pallet bags of different weights; flexible steering of the rotary chain with strong compatibility; stable operation and complete protection, preventing material falling and damage; automation improves logistics efficiency and reduces labor, adapting to the large-scale and automated operation needs of warehousing and logistics.
